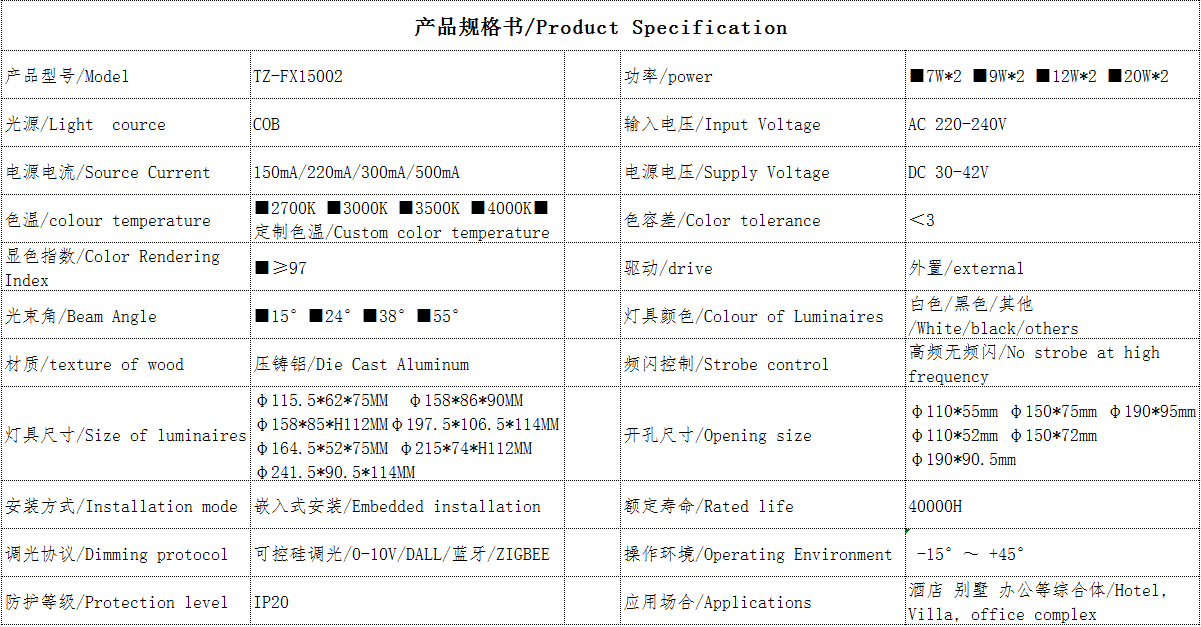

| 产品规格书/Product Specification | |
| 产品型号/Model | TZ-FX15002 |
| 光源/Light source | COB |
| 电源电流/Source Current | 150mA*2/220mA*2 |
| 色温/colour temperature | ■2700K ■3000K ■3500K ■4000K■定制色温/Custom color temperature |
| 显色指数/Color Rendering Index | ■≥97 |
| 光束角/Beam Angle | ■15°■24°■38°■55° |
| 材质/texture of wood | 压铸铝/Die Cast Aluminum |
| 灯具尺寸/Size of luminaires | φ115.5*62*75MM φ158*86*90MM φ158*85*H112MMφ197.5*106.5*114MM φ164.5*52*75MM φ215*74*H112MM φ241.5*90.5*114MM |
| 安装方式/Installation mode | 嵌入式安装/Embedded installation |
| 调光协议/Dimming protocol | 可控硅调光/0-10V/DALI/蓝牙/ZIGBEE |
| 防护等级/Protection level | IP20 |
| 功率/power | ■7W*2 ■9W*2 ■12W*2 ■20W*2 |
| 输入电压/Input Voltage | AC 220-240V |
| 电源电压/Supply Voltage | DC 30-42V |
| 色容差/Color tolerance | ＜3 |
| 驱动/drive | 外置/external |
| 灯具颜色/Colour of Luminaires | 白色/黑色/其他/White/black/others |
| 频闪控制/Strobe control | 高频无频闪/No strobe at high frequency |
| 开孔尺寸/Opening size | φ110*55mm φ150*75mm φ190*95mm φ110*52mm φ150*72mm φ190*90.5mm |
| 额定寿命/Rated life | 40000H |
| 操作环境/Operating Environment | -15°～ +45° |
| 应用场合/Applications | 家装、酒店 别墅 办公等综合体Home decoration，Hotel, Villa, office complex |
