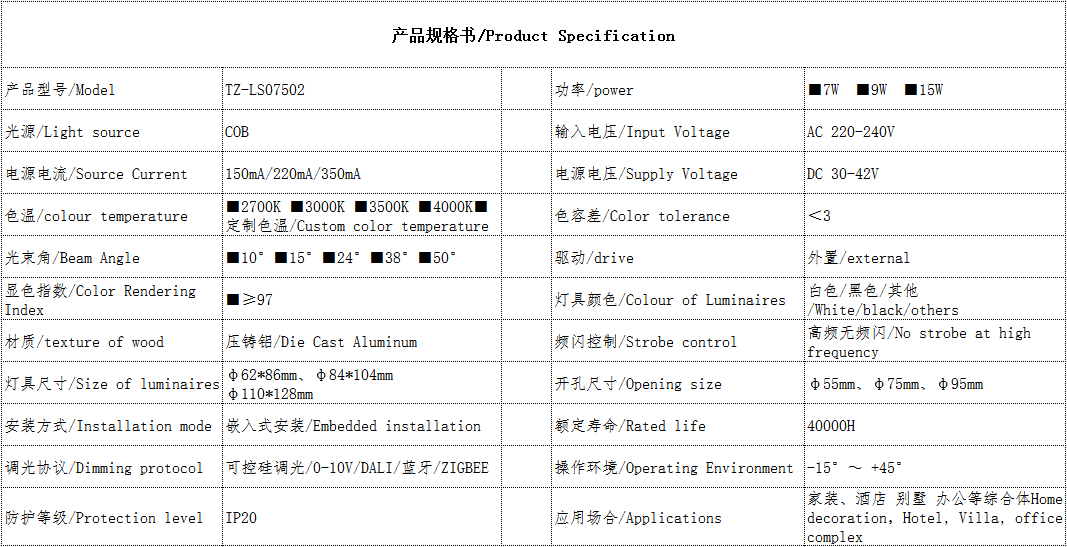

产品规格书/Product Specification | |

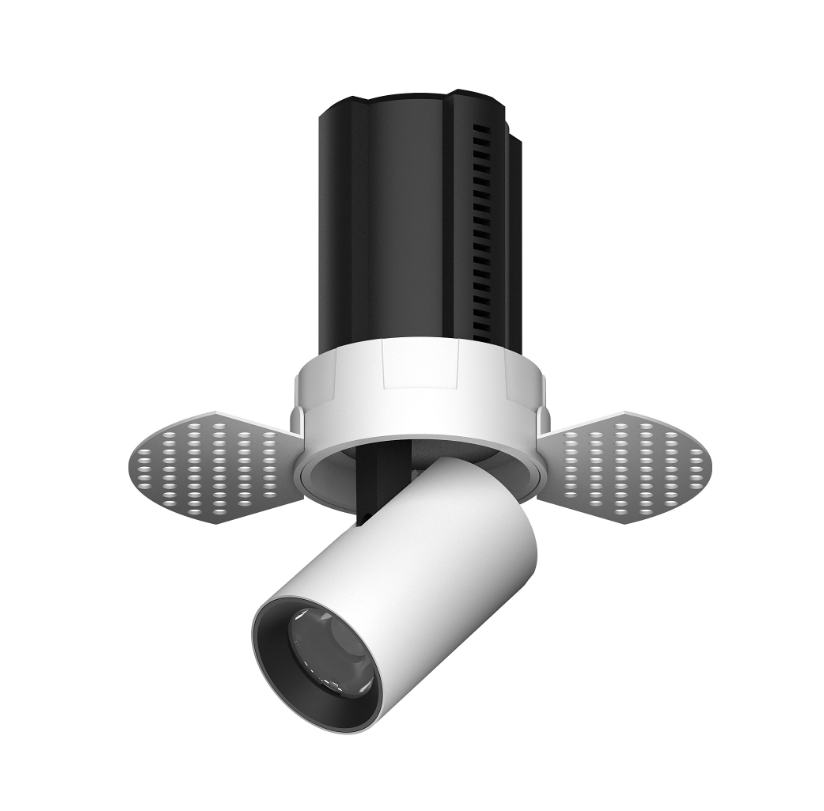

产品型号/Model | TZ-LS07502 |
光源/Light source | COB |
电源电流/Source Current | 150mA/220mA/350mA |
色温/colour temperature | ■2700K ■3000K ■3500K ■4000K■定制色温/Custom color temperature |
显色指数/Color Rendering Index | ■≥97 |
光束角/Beam Angle | ■10°■15° ■24°■38°■50° |
材质/texture of wood | 压铸铝/Die Cast Aluminum |
灯具尺寸/Size of luminaires | φ62*86mm、φ84*104mm φ110*128mm |
安装方式/Installation mode | 嵌入式安装/Embedded installation |
调光协议/Dimming protocol | 可控硅调光/0-10V/DALI/蓝牙/ZIGBEE |
防护等级/Protection level | IP20 |
功率/power | ■7W ■9W ■15W |
输入电压/Input Voltage | AC 220-240V |
电源电压/Supply Voltage | DC 30-42V |
色容差/Color tolerance | <3 |
驱动/drive | 外置/external |
灯具颜色/Colour of Luminaires | 白色/黑色/其他/White/black/others |
频闪控制/Strobe control | 高频无频闪/No strobe at high frequency |
开孔尺寸/Opening size | φ55mm、φ75mm、φ95mm |
额定寿命/Rated life | 40000H |
操作环境/Operating Environment | -15°~ +45° |
应用场合/Applications | 家装、酒店 别墅 办公等综合体Home decoration,Hotel, Villa, office complex |
