轻盈一代-天自照明

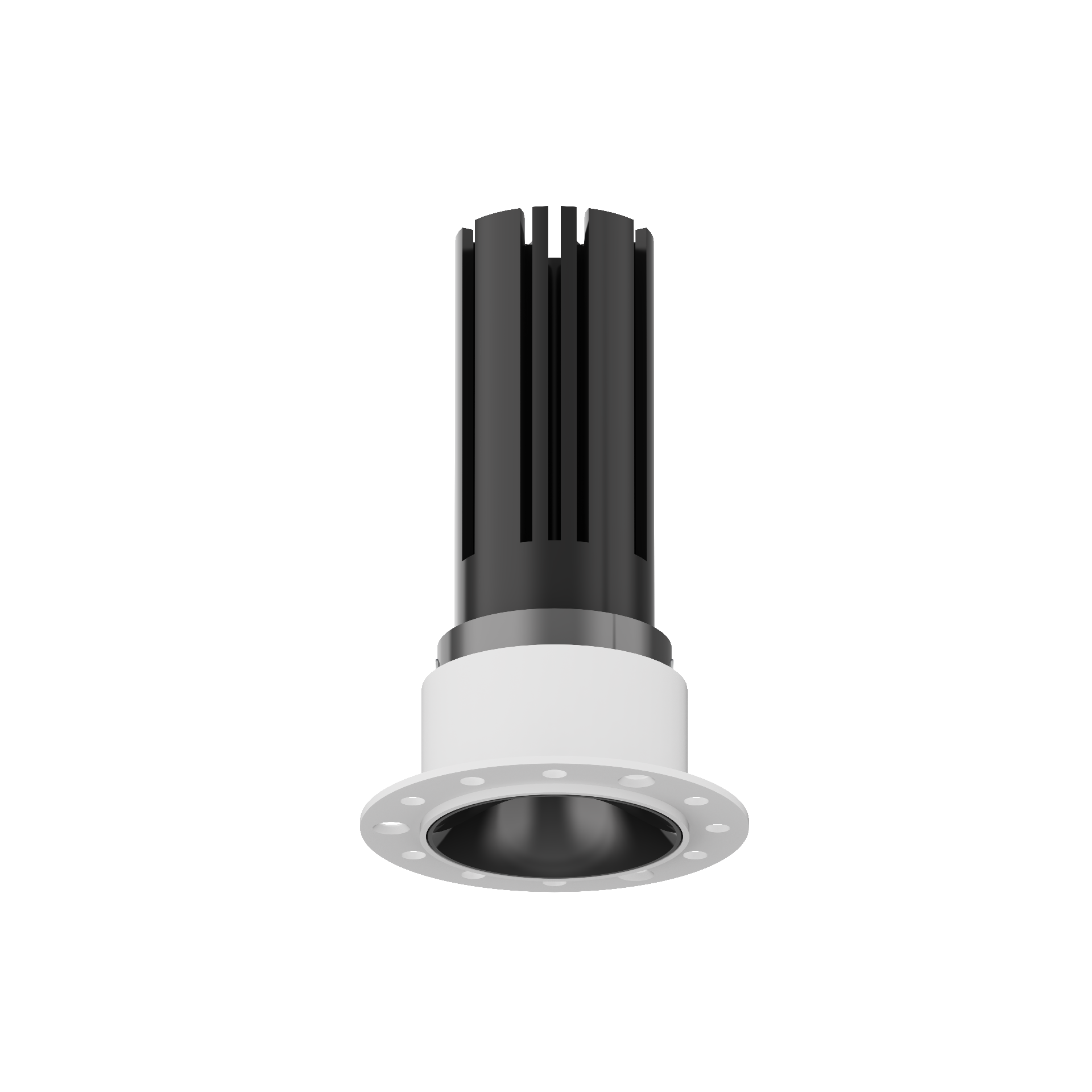

轻盈一代

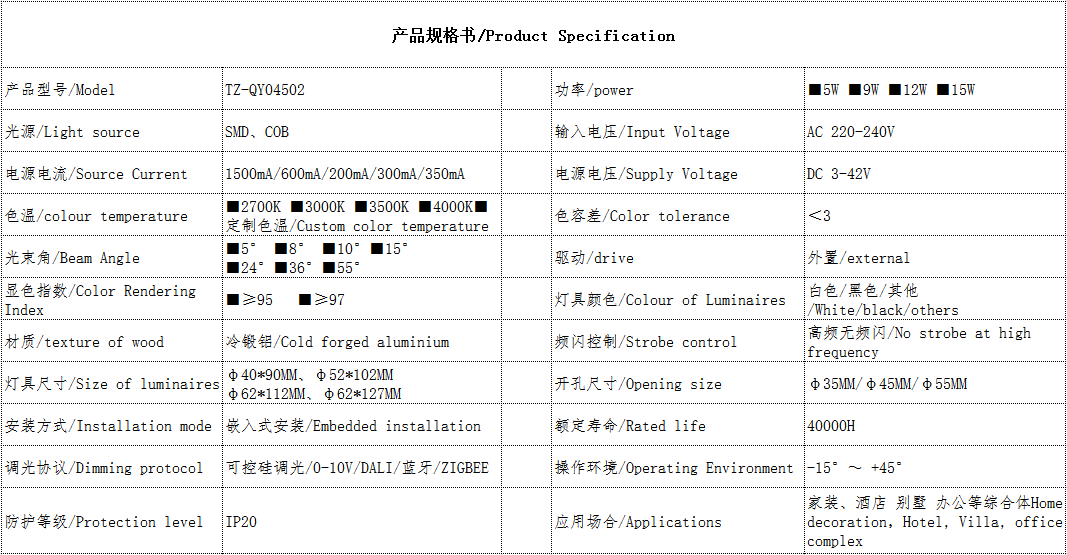

产品规格书/Product Specification
产品型号/Model	TZ-QY04502
光源/Light source	SMD、COB
电源电流/Source Current	1500mA/600mA/200mA/300mA/350mA
色温/colour temperature	■2700K ■3000K ■3500K ■4000K■定制色温/Custom color temperature
光束角/Beam Angle	■5° ■8° ■10° ■15° ■24° ■36° ■55°
显色指数/Color Rendering Index	■≥97
材质/texture of wood	冷锻铝/Cold forged aluminium
灯具尺寸/Size of luminaires	φ4090MM、φ52102MM φ62112MM、φ62127MM
安装方式/Installation mode	嵌入式安装/Embedded installation
调光协议/Dimming protocol	可控硅调光/0-10V/DALI/蓝牙/ZIGBEE
防护等级/Protection level	IP20
功率/power	■5W ■9W ■12W ■15W
输入电压/Input Voltage	AC 220-240V
电源电压/Supply Voltage	DC 3-42V
色容差/Color tolerance	＜3
驱动/drive	外置/external
灯具颜色/Colour of Luminaires	白色/黑色/其他/White/black/others
频闪控制/Strobe control	高频无频闪/No strobe at high frequency
开孔尺寸/Opening size	φ35MM/φ45MM/φ55MM
额定寿命/Rated life	40000H
操作环境/Operating Environment	-15°～ +45°
应用场合/Applications	家装、酒店别墅办公等综合体Home decoration，Hotel, Villa, office complex
